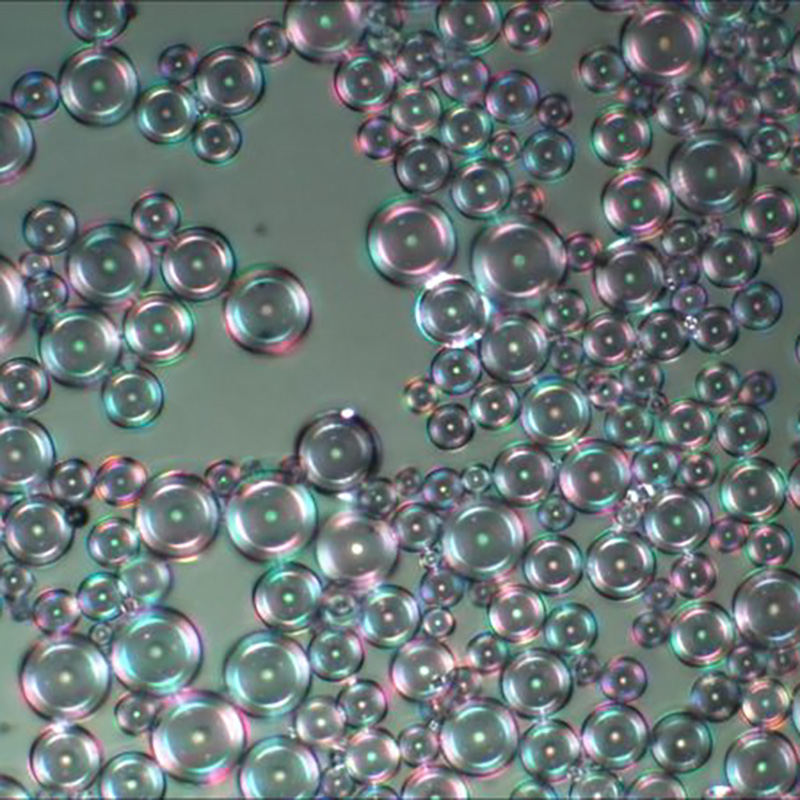

In the realm of advanced materials, very few can claim to be as versatile as Hollow Glass Microspheres. At first glance, they appear as a fine, white, free-flowing powder. However, under a microscope, their secret is revealed: thousands of tiny, perfect spheres, each a miniature vacuum-sealed capsule of air trapped inside a robust glass shell.
This unique structure—strength from the glass and lightness from the hollow air—is the secret to how HGMs have come to “conquer” both the sky and the sea. They are the unsung heroes enabling aircraft to fly higher and submarines to dive deeper.
Conquering the Sky: Making Aerospace Lighter, Stronger, and Stable
The primary battle in aerospace is against gravity. Every kilogram saved on an aircraft or spacecraft translates directly into fuel efficiency, greater payload capacity, or extended range. This is where HGMs shine as a “lightweighting” champion.
Engineers incorporate HGMs into polymers and resins to create syntactic foams. Unlike traditional foams that create bubbles chemically, syntactic foams have their bubbles pre-formed within the HGMs. This results in a material that is incredibly light but also uniformly strong. In commercial aviation, using glass bubbles in sheet molding compound (SMC) and bulk molding compound (BMC) can reduce the weight of composite parts like interior panels and ductwork by up to 40%, all while maintaining mechanical integrity and even achieving a Class A paintable surface finish.
At cruising altitudes, temperatures can plummet to -50°C. HGMs are excellent thermal insulators due to the still air (or vacuum) inside them, which disrupts the path of heat transfer . When mixed with matrices like phenolic resin, they create composites with significantly lower thermal conductivity than the neat resin alone . This protects sensitive electronics and maintains a stable cabin environment. Furthermore, their high temperature resistance (withstanding up to 600°C or more) makes them suitable for applications near engines or in hypersonic vehicles.
For radomes and antenna housings, materials must be “radio frequency (RF) transparent.” HGMs have a low dielectric constant, meaning they interfere minimally with electromagnetic signals passing through them, ensuring clear communication and radar functionality.
Conquering the Sea: Defying the Extremes of the Abyss
If the sky demands lightness, the sea—particularly the deep sea—demands the ability to withstand immense pressure. For every 10 meters of depth, pressure increases by one atmosphere. At the bottom of the Mariana Trench, the pressure is over 1,100 times that at sea level. Hollow glass microspheres are the only reason man-made vehicles can explore these crushing depths .
Most materials used to build submersibles (steel, titanium) are heavier than water. To make the vehicle neutrally buoyant (so it neither sinks nor floats), they need to carry a buoyancy material. Syntactic foam filled with HGMs is the ideal solution. The hollow microspheres provide millions of tiny air pockets that make the composite lighter than water, providing the necessary uplift. Because the air is sealed in individual glass “bubbles,” the foam resists implosion under high pressure, unlike a large, single air chamber.
In the oil and gas industry, subsea pipelines carry hydrocarbons from the wellhead at high temperatures. If the oil cools down too much as it travels through cold deep water, waxes and hydrates can form, blocking the pipe. HGMs are used in thermal insulation coatings on these pipelines (“wet insulation”). The low thermal conductivity of the glass bubbles keeps the oil hot, ensuring it flows freely . This technology is so effective that it has largely replaced traditional, bulky, and heavy “pipe-in-pipe” systems, reducing the overall weight of the pipeline by more than 50% and making installation easier and more economical.
In the high-pressure deep sea, water ingress is a constant threat to material integrity. HGMs are made from soda-lime borosilicate glass, which is chemically stable and virtually insoluble in water . Studies have shown that flexible buoyancy materials incorporating HGMs have a maximum water absorption of less than 0.25% under a hydrostatic pressure of 40 MPa for 2 hours . This ensures that the material maintains its density and buoyancy over long periods, even in the harshest conditions.
In the sky, these microspheres serve as silent partners in the quest for efficiency—trimming weight, insulating against the cold, and disappearing into composite structures that carry humanity skyward. Beneath the waves, their role transforms. Here, they become miniature pressure vessels, each sphere a fortress of air standing firm against millions of tons of seawater. They don’t just insulate; they enable survival where no structure should remain intact.
